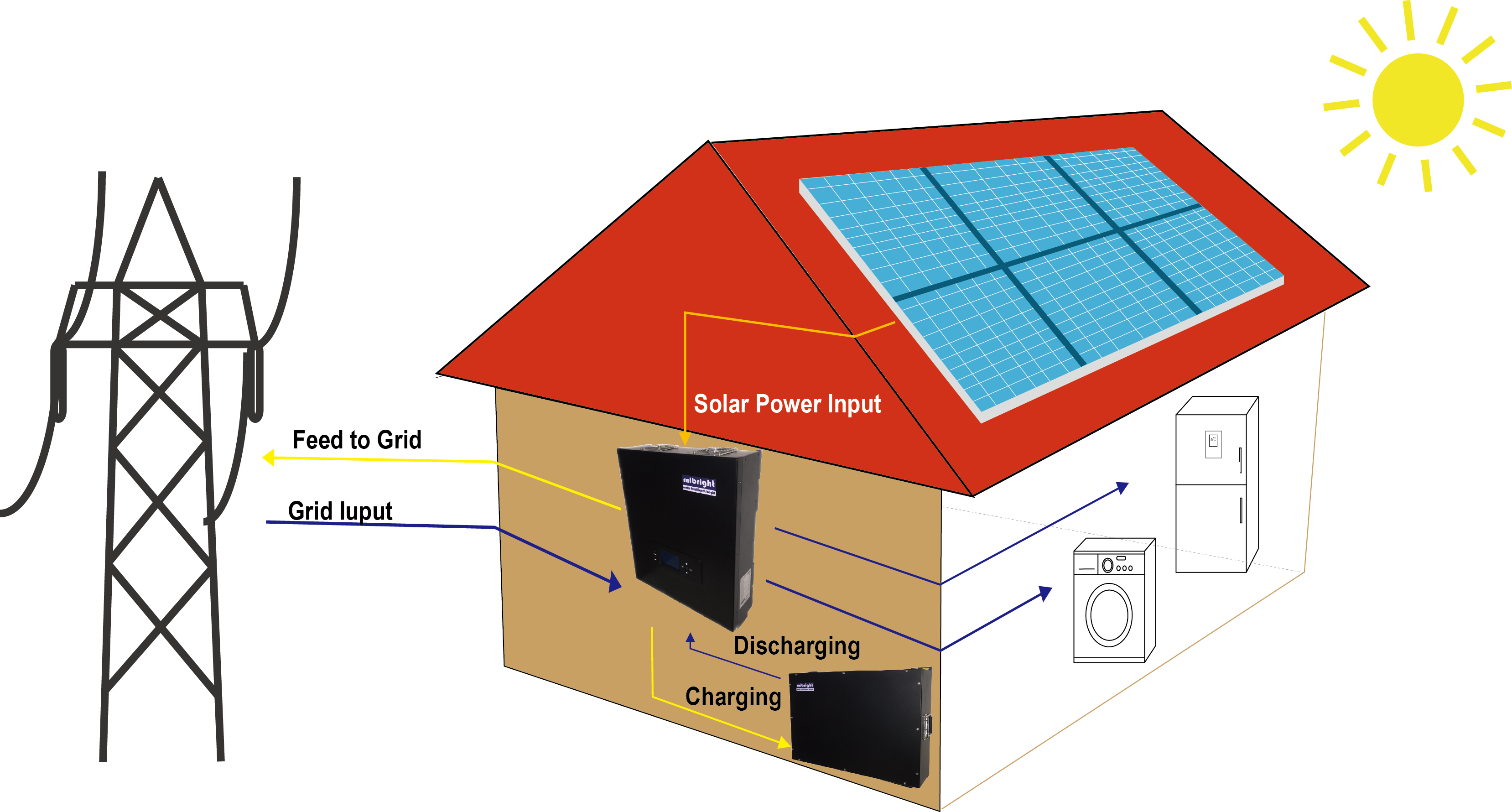

During the daytime it charges the battery packs using solar energy and then uses the electricity from the battery during peak rate hours.

Integrated with a bi-directional inverter, a battery pack and an energy management unit, the MiBright Energy Storage System is a one-stop turnkey solution that has four automatic power modes for on- and off-grid. When the grid is black out during an emergency, the energy storage system will automatically switch to off-grid mode for continuous power supply.

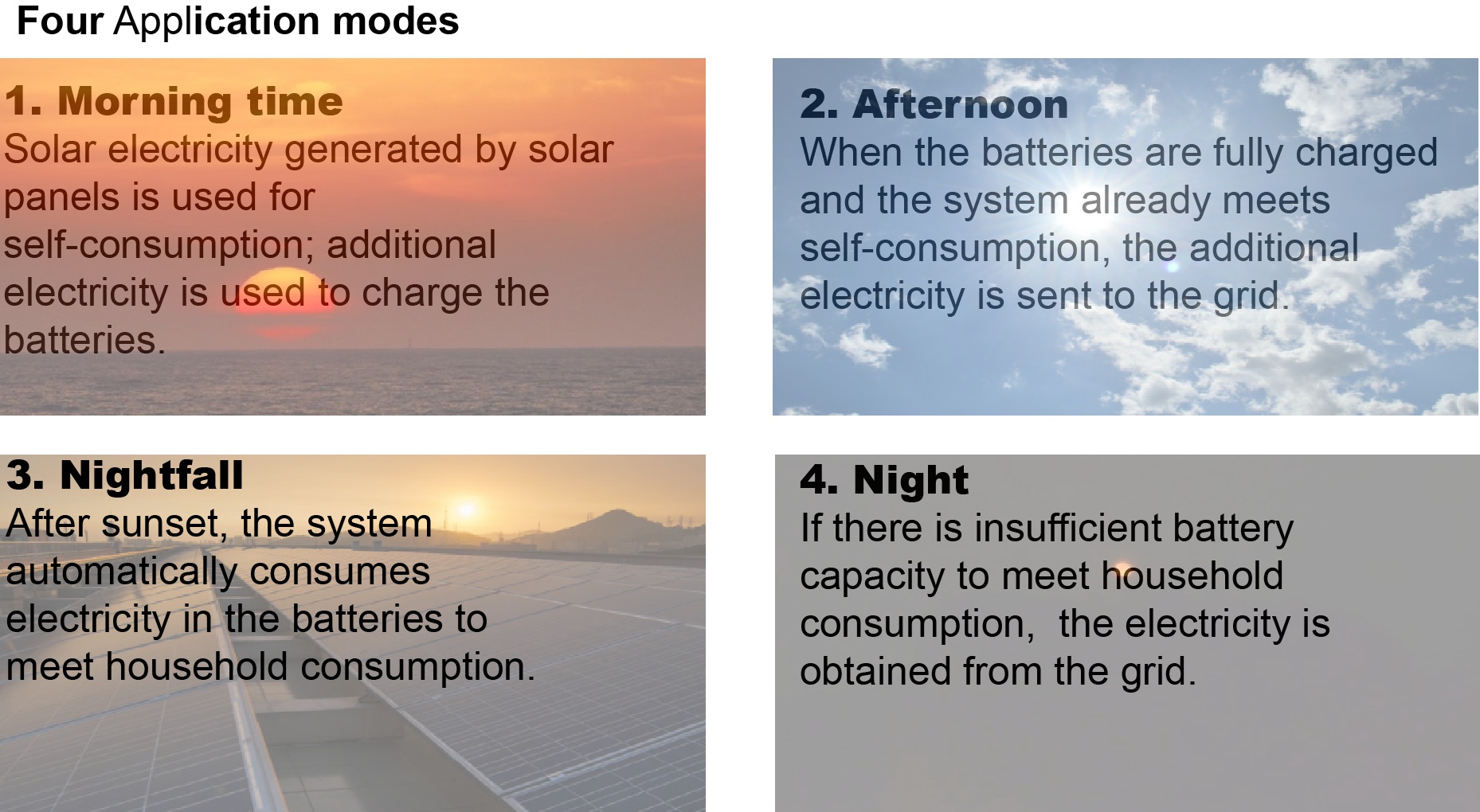

Application mode:

MiBright ESS Characteristics

1. Operating Flexibility

● Operating modes can be programmed flexibly

● On-grid operating, easy feed-in to the grid, backflow prevention, energy elf-generation and self-consumption.

● Off-grid operating, no worry about grid power failure

● Solar power, battery power and AC utility power source to provide loads with continuous power

● Even with grid or PV input only, inverter can still start working without battery

● Priority of PV, battery or grid power source can be programmed flexibly

● High efficiency of battery management system, EOD, floating voltage and charge current are settable.

2. High efficiency and safety

● Soft-switching technology, improving inverter efficiency

● DSP complete digital control technology

● Small size, light weight, easy installation

● Superior protection

3. Intelligent monitoring

● LCD, LED display real-time operating information

● Monitoring software display real-time operating information

● Monitoring software make operating modes programmed and control

● Various communications selectable via USB, RS232, RS485, SNMP

4. Compatible with different battery solutions

● Lithium-ion NCM battery

● Lithium Iron Phosphate battery

● Lead acid battery

● Lead carbon battery
